Sno Pro UTV Plows

Advanced UTV Plow Technology

  • The Sno-Pro UTV snowplows are designed to use a winch as plow lifting mechanism, winch and mount kit sold separately.
  • Manual pivot rotates plow 30° either direction.
  • Blade pivots forward when striking an stationary object, protecting the plow assembly from damage.
  • Limit switch protects winch from stalling and extends winch life also the life of wire rope or synthetic rope.!!!!!

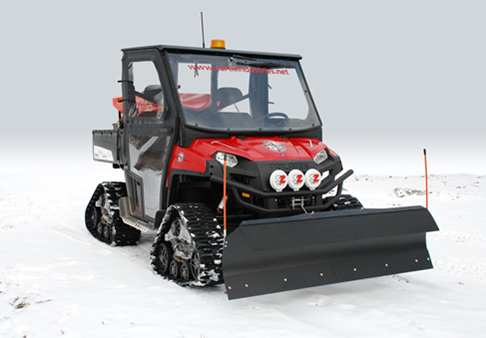

72" Poly Sno-Pro Tapered snowplow* with winch lift - Part Number: 1YAMUTP

*Requires mount and winch, sold separately
  • Heavy reinforced 72", 3/16" thick polymer tapered blade (high-way style) plow.
  • Total weight (plow assembly and mount: 190lbs.
  • Width: 6 feet
  • Height (top of taper): 28 inches
  • Height (bottom of taper): 18 inches
  • Sector: 48 inches
  • Attack angle (cutting edge): 22 degrees
  • Cutting Edge - Replaceable steel cutting edge
  • Limit Switch - Winch mounted, adjustable limit switch (controls over-driving winch while plowing
  • Includes blade markers and all necessary mounting hardware (winch lift not included

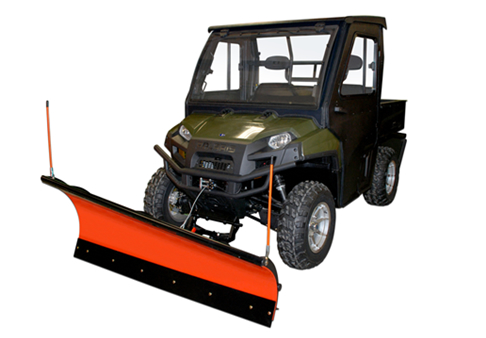

72" Steel  UTV Sno-Pro snowplow* - Part Number: 1YAMSP

*Requires mount and winch, sold separately
  • 72” Steel Straight Plow with winch lift
  • Heavy reinforced 72", 12 gauge (.104") steel blade straight plow.n Total weight (plow assembly and mount: 180lbs.
  • Width: 6 feet
  • Height: 19 inches
  • Sector: 48 inches
  • Attack angle (cutting edge): 22 degrees
  • Cutting Edge - Replaceable steel cutting edge
  • Limit Switch - Winch mounted, adjustable limit switch (controls over-driving winch while plowing
  • Includes blade markers and all necessary mounting hardware (winch lift not included)

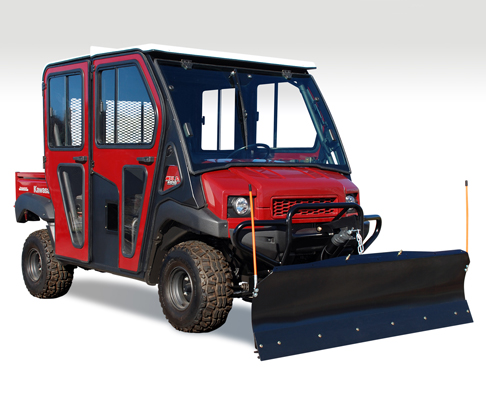

72" Steel  UTV Sno-Pro snowplow* - Part Number: 1KAWM4SP

  • Mule Plow features our new Quick-Attach system that allows quick removal of snowplow when not in use.
  • Durable 72” steel moldboard with replaceable steel cutting edge included.
  • Electric actuator lift is strong and cleanly integrated into snowplow package.
  • Mule mounting kit offers an efficient design and uses factory mounting points.
  • High visibility plow markers and skid shoes (for use on dirt or gravel) are included.
  • OEM quality at factory-direct value.
  • Optional snow deflector (not shown).






72" Steel Utility Vehicle Snow Plow
Part Number:
1UTVP

  • Full assembled snow plow - quicker installation time!
  • 12 Gauge steel moldboard measures 19"X72"
  • 7 Gaugetrip frame superstructure - ultra strong and durable
  • Custom bolt-on mount kits designed for each vehicle
  • Full hydraulic lift and angle control
  • One-plug electrical connection
  • Integrated folding jack stand for storage
  • Powder coated steel
  • High visibility plow markers and skid shoes (for use on dirt or gravel) are included
  • Optional snow deflector (not shown)
